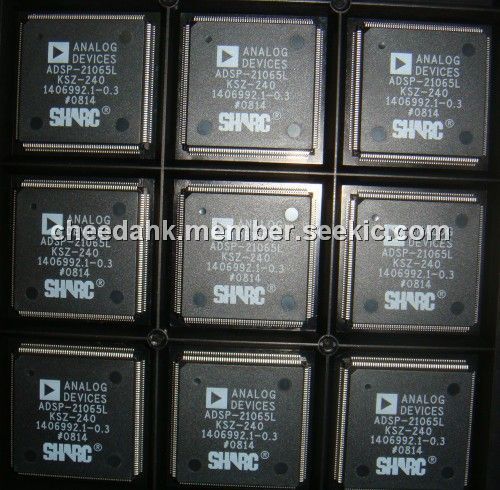

Product Summary

The ADSP-21065LKSZ-240 is a DSP microcomputer. It is suitable for cost sensitive applications.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: –0.3V to +4.6V; (2)Input Voltage: –0.5V to VDD + 0.5V; (3)Output Voltage Swing: –0.5V to VDD + 0.5V; (4)Load Capacitance: 200pF; (5)Junction Temperature Under Bias: 130℃; (6)Storage Temperature Range: –65℃ to +150℃; (7)Lead Temperature (5 seconds): 280℃.

Features

Features: (1)66 MIPS, 198 MFLOPS Peak, 132 MFLOPS Sustained Performance; (2)User-Configurable 544 Kbits On-Chip SRAM Memory; (3)Two External Port, DMA Channels and Eight Serial Port, DMA Channels; (4)SDRAM Controller for Glueless Interface to Low Cost; (5)External Memory (@ 66 MHz); (6)64M Words External Address Range; (7)12 Programmable I/O Pins and Two Timers with Event Capture Options; (8)Code-Compatible with ADSP-2106x Family; (9)208-Lead MQFP or 196-Ball Mini-BGA Package; (10)3.3 Volt Operation.

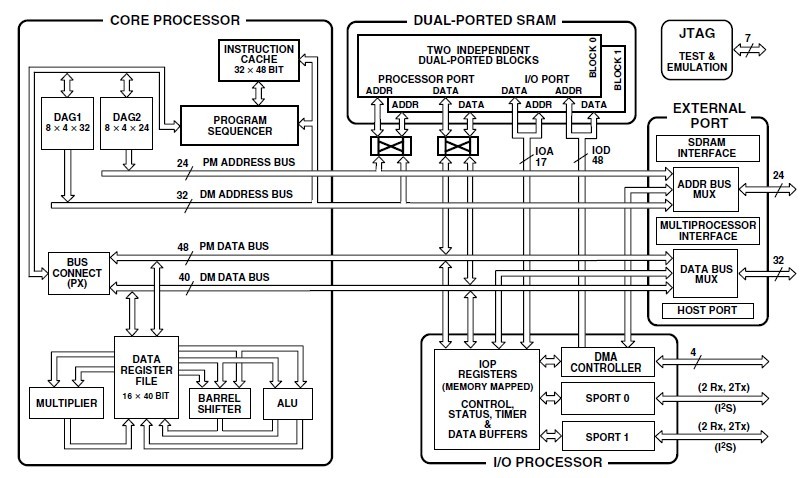

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADSP-21065LKSZ-240
ADSP-21065LKSZ-240

IC DSP CONTROLLR 544KBIT 208MQFP
Data Sheet
0-1: $24.94
1-10: $23.32
10-100: $20.22
100-250: $18.87
250-500: $17.97
