Product Summary

The MW7IC18100NBR wideband integrated circuit is designed with on-chip matching that makes it usable from 1805 to 2050 MHz. This multi -stage structure is rated for 24 to 32 Volt operation and covers all typical cellular base station modulations including GSM EDGE and CDMA.

Parametrics

Absolute maximum ratings: (1)Drain-Source Voltage, VDSS: -0.5 to +65Vdc; (2)Gate-Source Voltage, VGS: -0.5 to +6Vdc; (3)Storage Temperature Range, Tstg: -65 to +200℃; (4)Operating Junction Temperature, TJ: 200℃.

Features

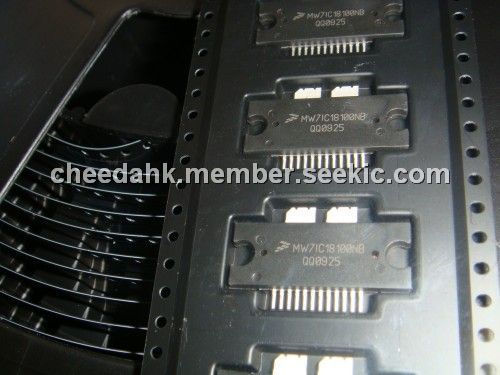

Features: (1)Characterized with Series Equivalent Large-Signal Impedance Parameters and Common Source Scattering Parameters; (2)On-Chip Matching (50 Ohm Input, DC Blocked); (3)Integrated Quiescent Current Temperature Compensation with Enable/Disable Function; (4)Integrated ESD Protection; (5)200℃ Capable Plastic Package; (6)RoHS Compliant; (7)In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel.

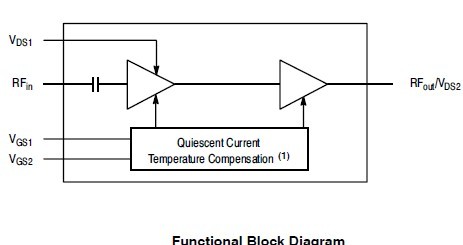

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MW7IC18100NBR1
MW7IC18100NBR1
Freescale Semiconductor
RF Amplifier HV7 1990MHZ
Data Sheet
0-271: $38.04
271-500: $27.43
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MW7IC008NT1
MW7IC008NT1
Freescale Semiconductor
RF Amplifier HV7 900MHZ 8W PQFN8X8
Data Sheet
0-445: $9.80
445-500: $8.72
500-1000: $5.81
MW7IC18100GNR1
MW7IC18100GNR1
Freescale Semiconductor
RF Amplifier HV7 1990MHZ
Data Sheet
Negotiable
MW7IC18100NBR1
MW7IC18100NBR1
Freescale Semiconductor
RF Amplifier HV7 1990MHZ
Data Sheet
0-271: $38.04
271-500: $27.43
MW7IC18100NR1
MW7IC18100NR1
Freescale Semiconductor
RF Amplifier HV7 1990MHZ
Data Sheet
0-271: $38.04
271-500: $27.43
MW7IC2020NT1
MW7IC2020NT1
Freescale Semiconductor
RF Amplifier HV7IC 2GHz 20W PQFN8X8
Data Sheet
0-446: $19.00
446-500: $16.91
500-1000: $11.27
MW7IC2040GNR1
MW7IC2040GNR1
Freescale Semiconductor
RF Amplifier HV7 1990MHz WB16 Gull Wing
Data Sheet
0-271: $27.33
271-500: $19.71
