Product Summary

The GRM55ER72A475KA01L is a Monolithic Ceramic Capacitor with High Dielectric Constant.

Parametrics

General specifications: (1)capacitance: 4.7uF; (2)tolerance:10 %; (3)voltage rated value: 100Volts; (4)operating temperature range:-55℃ to +125℃; (5)Temperature Coefficient/Code: X7R; (6)size: 5 mm W x 5.7 mm L x 2.5 mm H; (7)package:Reel; (8)Standard Pack Qty:500; (9)terminating type:SMD/SMT.

Features

Features: (1)Higher resistance of solder-leaching due to the Ni-barriered termination, applicable for reflow-soldering, and flow-soldering (GRM18/21/31 type only); (2)The GRM series is a lead free product; (3)Smaller size and higher capacitance value; (4)High reliability and no polarity; (5)Excellent pulse response and noise reduction due to the low impedance at high frequency; (6)The GRM series is available in paper or embossed tape and reel packaging for automatic placement Bulk case packaging is also available for GRM15/18/21(T=0.6,1.25); (7)TA replacement.

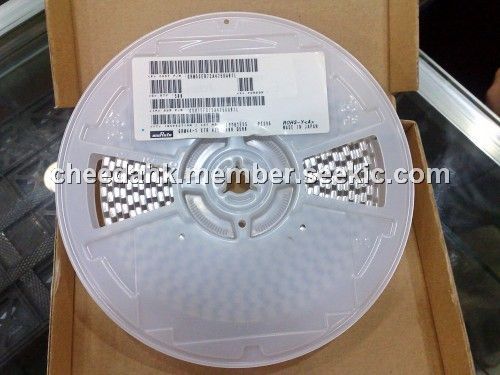

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
GRM55ER72A475KA01L
GRM55ER72A475KA01L
Murata
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 2220 4.7uF 100volts X7R 10%
Data Sheet
0-1: $1.60
1-50: $1.22
50-100: $1.11
100-500: $0.71
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
GRM55D7U2J333JW31L
GRM55D7U2J333JW31L
Murata
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 2220 0.033UF 630volt U2J +/-5%
Data Sheet
0-1: $0.83
1-50: $0.64
50-100: $0.58
100-500: $0.53
500-1000: $0.48
GRM55D7U2J393JW31L
GRM55D7U2J393JW31L
Murata
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 2220 0.039UF 630volt U2J +/-5%
Data Sheet
0-1: $0.85
1-50: $0.65
50-100: $0.59
100-500: $0.54
500-1000: $0.50
GRM55D7U2J473JW31L
GRM55D7U2J473JW31L
Murata
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 2220 0.047uF 630volt U2J +/-5%
Data Sheet
0-1: $0.88
1-50: $0.67
50-100: $0.61
100-500: $0.56
500-1000: $0.51
GRM55D7U3A103JW31L
GRM55D7U3A103JW31L
Murata
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 2220 0.01uF 1000volt U2J +/-5%
Data Sheet
0-1: $0.82
1-50: $0.63
50-100: $0.57
100-500: $0.52
500-1000: $0.48
GRM55D7U3A822JW31L
GRM55D7U3A822JW31L
Murata
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 2220 8200pF 1000volt U2J +/-5%
Data Sheet
0-1: $0.79
1-50: $0.61
50-100: $0.55
100-500: $0.50
500-1000: $0.46
GRM55DB32E334KY01L
GRM55DB32E334KY01L
Murata
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 2220 0.33uF 250volts B 10%
Data Sheet
0-1: $1.90
1-50: $1.10
50-100: $0.98
100-500: $0.84
500-1000: $0.61
