Product Summary

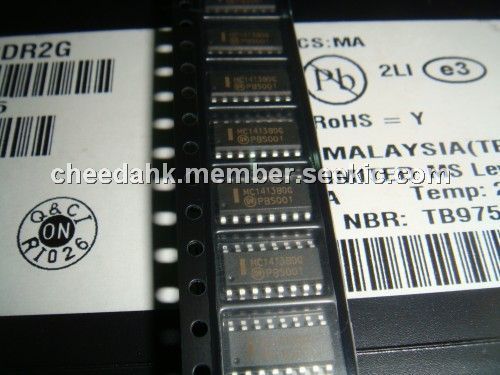

The MC1413BDR2G is a high voltage, high current darlington transistor array. The seven NPN Darlington connected transistors in this array are well suited for driving lamps, relays, or printer hammers in a variety of industrial and consumer applications. Their high breakdown voltage and internal suppression diodes insure freedom from problems associated with inductive loads. Peak inrush currents to 500mA permit them to drive incandescent lamps. The MC1413BDR2G, B with a 2.7kΩ series input resistor is well suited for systems utilizing a 5.0V TTL or CMOS Logic.
Parametrics
Absolute maximum ratings: (1)Output Voltage, VO: 50V; (2)Input Voltage, VI: 30V; (3)Collector Current, Continuous, IC: 500mA; (4)Base Current, Continuous, IB: 25mA; (5)Operating Ambient Temperature Range, TA: -40 to +85℃; (6)Storage Temperature Range, Tstg: -55 to +150℃; (7)Junction Temperature, TJ: 150℃; (8)Thermal Resistance, Junction to Ambient, Case 648, P Suffix, RθJA: 67℃/W; (9)Thermal Resistance, Junction to Ambient, Case 751B, D Suffix, RθJA: 100℃/W; (10)Thermal Resistance, Junction to Case, Case 648, P Suffix, RθJA: 22℃/W; (11)Thermal Resistance, Junction to Case, Case 751B, D Suffix, RθJA: 20℃/W; (12)Electrostatic Discharge Sensitivity (ESD), Human Body Model (HBM), ESD: 2000V; (13)Electrostatic Discharge Sensitivity (ESD), Machine Model (MM), ESD: 400V; (14)Electrostatic Discharge Sensitivity (ESD), Charged Device Model (CDM), ESD: 1500V.
Features
Features: Pb-8722; Free Packages are Available.

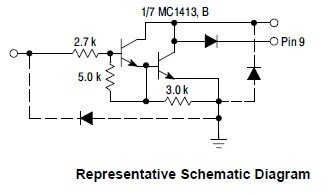

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC1413BDR2G |
ON Semiconductor |
Transistors Darlington High Voltage High Current Darlington |
Data Sheet |
|
|
||||||||||||||||
