Product Summary
The RT8010PQW is a high-efficiency Pulse-Width-Modulated (PWM) step-down DC-DC converter. Capable of delivering 1A output current over a wide input voltage range from 2.5V to 5.5V, it is ideally suited for portable electronic devices that are powered from 1-cell Li-ion battery or from other power sources such as cellular phones, PDAs and hand-held devices.
Parametrics
Absolute maximum ratings: (1)Supply Input Voltage: 6.5V; (2)EN, FB Pin Voltage: -0.3V to VIN; (3)Lead Temperature (Soldering, 10 sec.): 260℃; (4)Storage Temperature Range: -65℃ to 150℃; (5)Junction Temperature: 150℃; (6)ESD Susceptibility: HBM (Human Body Mode): 2kV; MM (Machine Mode): 200V.
Features
Features: (1)+2.5V to +5.5V Input Range; (2)Output Voltage (Adjustable Output From 0.6V to VIN); (3)1A Output Current; (4)95% Efficiency; (5)No Schottky Diode Required; (6)1.5MHz Fixed-Frequency PWM Operation; (7)Small 6-Lead WDFN and 16-Lead WQFN Package; (8)RoHS Compliant and 100% Lead (Pb)-Free.

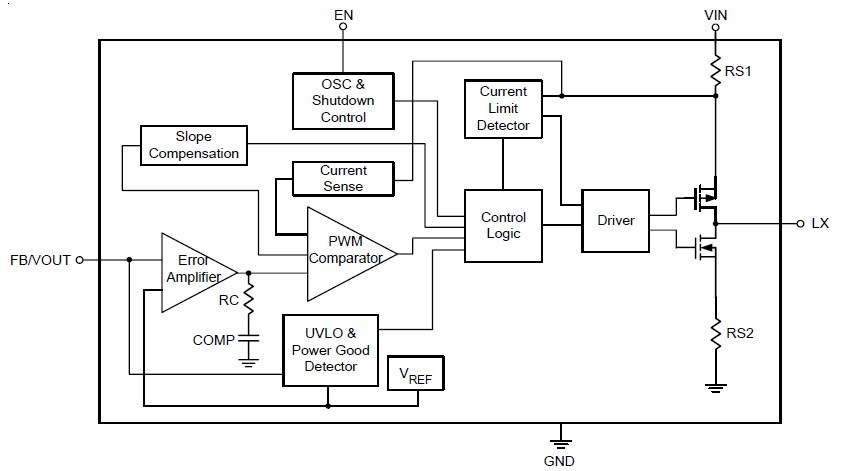

Diagrams
 |
