Product Summary

The TSB41AB2PAPRG4 is a transceiver.

Parametrics

Absolute maximum ratings: (1)Supply voltage range, VDD: -0.3V to 4V; (2)Input voltage range, VI: -0.5V to VDD + 0.5V; (3)Output voltage range at any output, VO: -0.5V to VDD + 0.5V; (4)Storage temperature range, Tstg: -65℃ to 150℃; (5)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

Features: (1)Software Device Reset (SWR); (2)Industry Leading Low Power Consumption; (3)Ultralow-Power Sleep Mode; (4)Cable Power Presence Monitoring; (5)Cable Ports Monitor Line Conditions for Active Connection to Remote Node; (6)Data Interface to Link Layer Controller Through 2/4/8 Parallel Lines at 49.152 MHz; (7)Interface to Link Layer Controller Supports Low-Cost TI Bus-Holder Isolation and Optional Annex J Electrical Isolation; (8)Interoperable With Link Layer Controllers Using 3.3 V; (9)Single 3.3-V Supply Operation; (10)Low-Cost 24.576-MHz Crystal Provides Transmit, Receive Data at 100/200/400Mbits/s, and Link-Layer Controller Clock at 49.152 MHz; (11)Low-Cost High-Performance 64-Pin TQFP Thermally Enhanced PowerPAD. Package Increases Thermal Performance by up to; (12)210%; (13)Meets Intel. Mobile Power Guideline 2000.

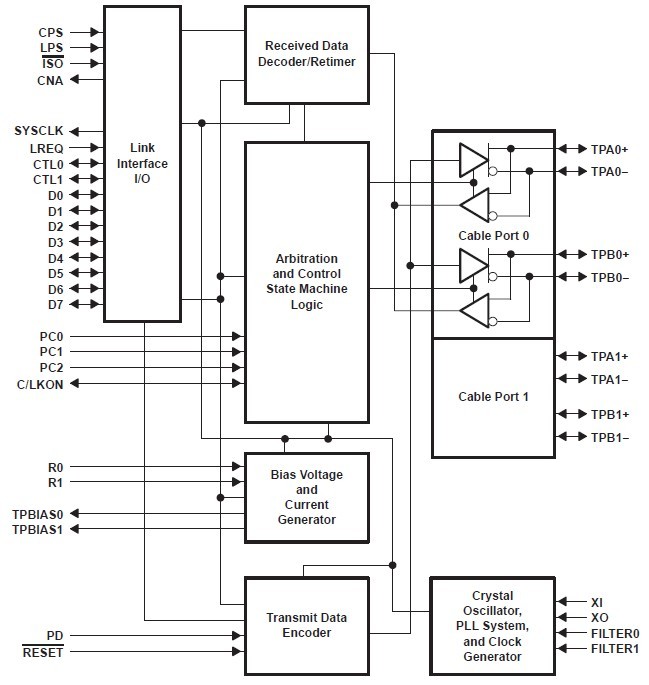

Diagrams

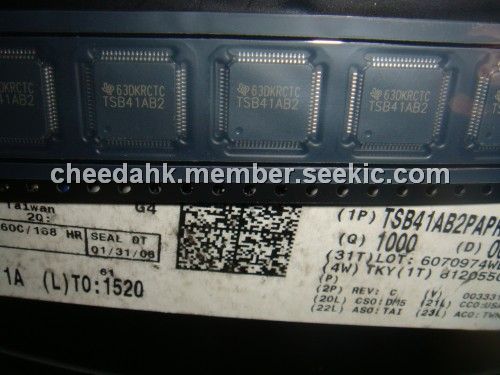

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TSB41AB2PAPRG4
TSB41AB2PAPRG4
Texas Instruments
1394 Interface IC IEEE1394a 2Port Cable Xcvr/Arbiter
Data Sheet
0-645: $1.72
645-1000: $1.48
1000-2000: $1.45
2000-5000: $1.39
